UniversalPlantViewer

See your Industry in new dimensions

The UniversalPlantViewer was designed to enhance collaboration and optimise your entire plant lifecycle. A complete digital model with 3D model, P&ID, LaserScan, drawings documents, data – all linked together and simple accessible for every stakeholder, everywhere on all devices.

upv-doppelscreen-01

Key Features:

  • UniversalPlantViewer is an industry proven „Digital Twin“ software for Owner/Operators as well as EPCs.
  • Provide all information (3D Model, Laser-Scan, intelligent P&ID, Documents, Drawings)
  • On all devices (Windows, iOS, Android, Browser)
  • Through all channels (Online, Offline, Streaming, Browser)
  • For all in the simplest way (internal and external stakeholder)

Created for optimal plant design

UniversalPlantViewer 6 was designed to enhance collaboration and optimise your entire plant lifecycle. A complete digital model with 3D model, P&ID, LaserScan, drawings documents, data – all linked together and simple accessible for every stakeholder, everywhere on all devices. UniversalPlantViewer has unique functions to keep your digital model up-to-date and support your workflows.

Industry proven software

UniversalPlantViewer is a proven software for Owner/Operators as well as EPCs. It is used for the hugest industry projects worldwide.

On all devices

UniversalPlantViewer runs on all devices (Windows PC, iPad, Android …) with an enormous speed even for the hugest industry projects. Streaming, online and offline.

Most formats supported

UniversalPlantViewer supports the most industry formats like Smart 3D®, PDS®, PDMS®, E3D®, Navis Works®, IFC®, LaserScan®, SmartPlant P&ID®, PDF …

UniversalPlantViewer Functions

verschiedene ausgangsformate gemischt

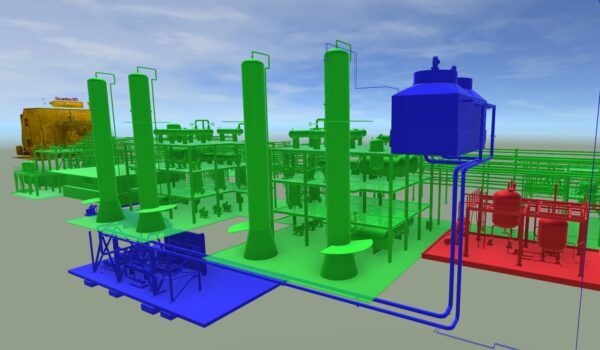

Seamless integration

jump from 3D to 2D to documents with a single click or show the same objects simultaneously in different tools; 3D model, P&ID, isometrics and documents get linked automatically, links to other systems (SAP etc.) can be easily set.

intelli-PID_b

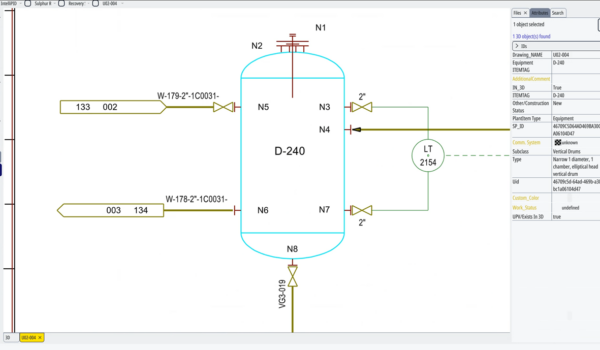

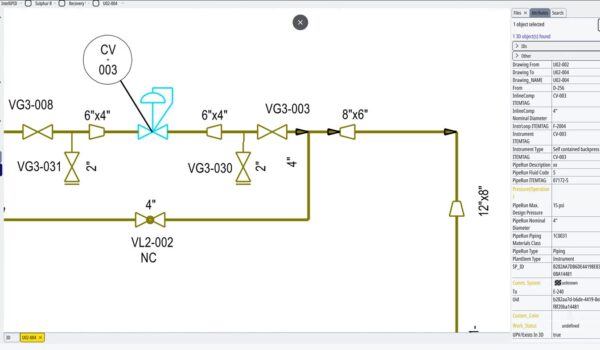

Intelligent P&ID

Supports search, reporting and mark-up, off-page connectors, display styles etc.

laser-scan

Laser scan integration

Due to our unique fully automated mesh creation algorithm the largest laser scan projects in our industry can be fully integrated with a 3D model, tagged and enriched with additional information even on a smartphone.

zusätzliche attribute

Editable attributes

UniversalPlantViewer is fully configurable. Attributes can be filled and changed in the field. This makes it easy to keep the Digital Twin up-to-date.

News Functions in UniversalPlantViewer 6

BrowserBasedViewing

BrowserBasedViewing

“Digital Twin” with all attributes/documents/info’s directly as well the browser.

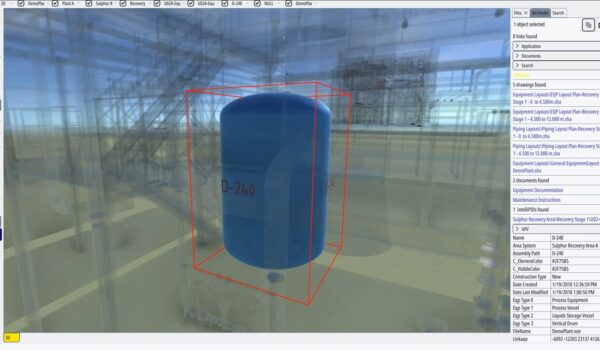

Embedded Drawings in the 3D model

Embedded Drawings in the 3D model

Graphically deposit drawings as an additional layer. Layout plan brings the model into a reference to the entire plant or simplest check of model against plan.

overlay

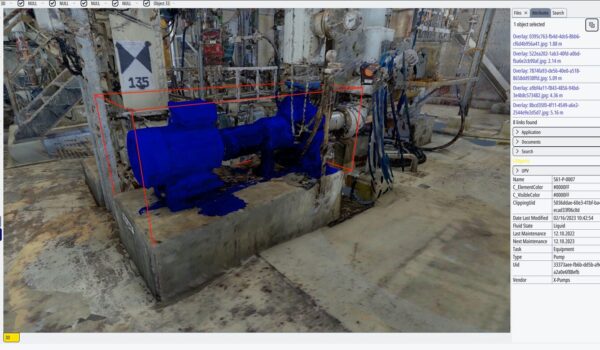

Photo overlay with cross-fade effect

Check model against reality in the simplest way. Place a (smartphone) photo behind the 3D model and compare both with a slider. This highly innovative technology quickly documents the difference between model and as-built.

OptimizedUI

Optimized UI

The optimised UI makes it simplest to structure all actions in the project. This makes it easy to maintain an overview even in a complex project and to collaborate effectively with partners.

See it in action

See some of UniversalPlantViewer’s functions shown by our experts.

UniversalPlantViewer use cases

use-case-600x400-003

Scenario:

Site inspection / assessment

Some of the most time-consuming activities in a project are the assessment of the current situation on site and the following site inspections. For both, especially in brown-field-projects, extensive preparations are to be completed first on stationary workstations.

Read more

use-case-600x400-001

Scenario:

Tender procedure

When a project is put out to tender, a lot of information needs to be provided to the prospective contractor for the submission of a precise quote.

Read more

use-case-600x400-002

Scenario:

Turnarounds

During turnarounds and turnaround preparations there are a lot of details to consider: Data must be gathered, time schedules set, working areas defined, activities coordinated, documents updated …

Read more

Latest press report

In every dimension – OMV going digital

Thanks to UniversalPlantViewer from CAXperts, method and technology leader Linde can also effectively use its plant models outside of 3D model engineering for many special applications.

Read more

Many extensions

The easy 3D model and data viewer for the plant industry

Combine with Oracle Primavera or MS Project in a simple way

Crane study and much more in a simple way

Commissioning / Startup System assignment across P&IDs including colour coded PDF documentation

Often a partly CAD model and a scan of a plant exists. UniversalPlantViewer brings both together in an innovative way, without complex and expensive remodelling.

Modify your model and P&IDs, document changes or carry out initial preliminary planning.

Comment and annotate on a dedicated layer, save and share

Connect and integrate UniversalPlantViewer with your software

Enrich and modify your digital twin

Events, webcasts and video conferences

UniversalPlantViewer

Find the right plan!

Monthly subscription

Computer license

 190,-

per Month

Yearly subscription

Computer license

 1900,-

per Year

Enterprise solutions

Need more for your company?

You can buy UniversalPlantViewer for your whole company / project without any limitations.

simplify work processes

We are the innovation leader in our field, inspired by the vision of creating simple, yet revolutionary software.
